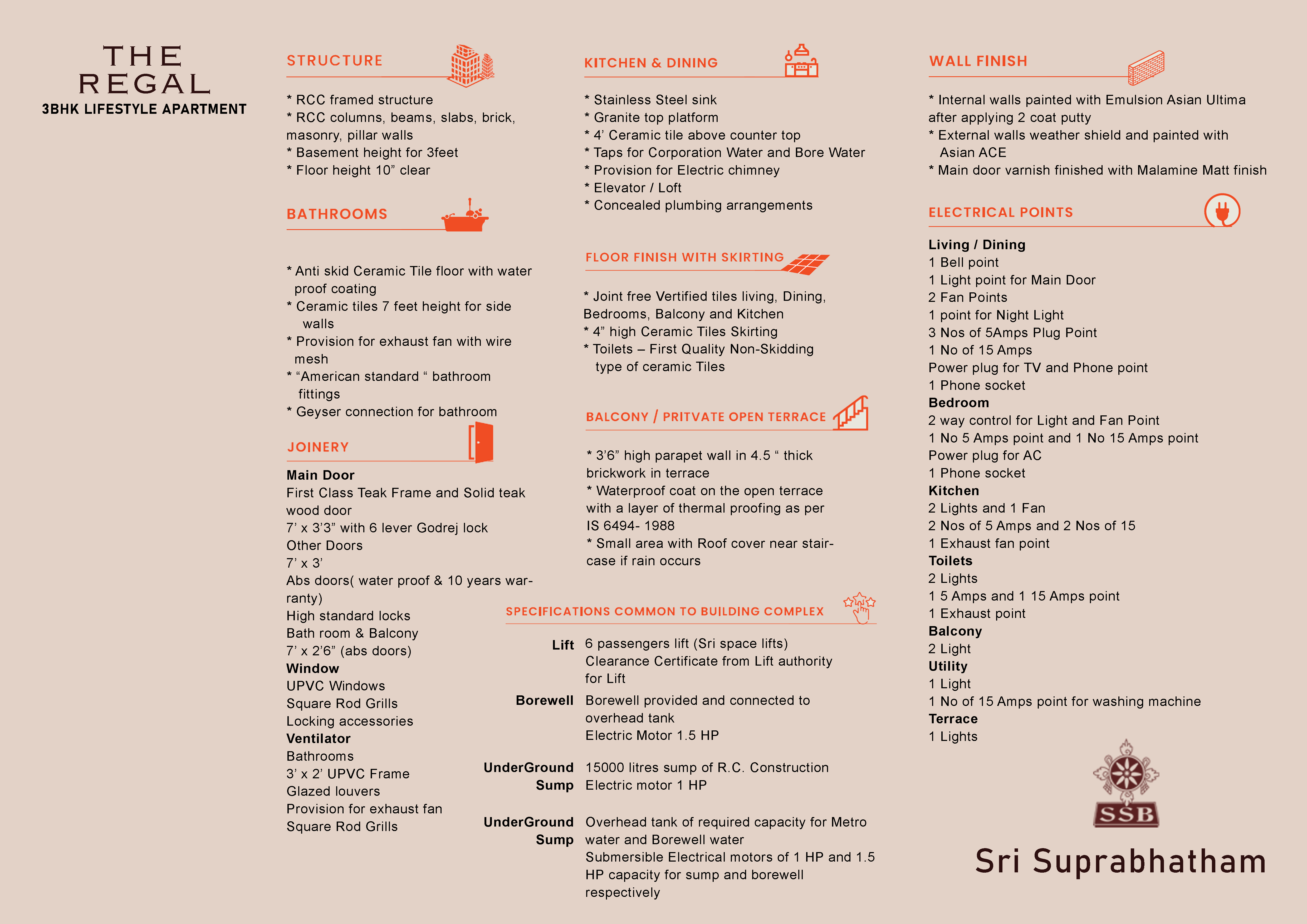

Earthquake resistant RCC framed structure with RCC columns connected by RCC plinth beam. (The I.S. design codes from Foundation to Roof is attached). Analysis of structural design is done by using STAADPRO.

Joint free Vertified tiles living, Dining, Bedrooms, Balcony and Kitchen
4” high Ceramic Tiles Skirting
Toilets – First Quality Non-Skidding type of ceramic Tiles

Main Door
First Class Teak Frame and Solid teak wood door
7’ x 3’3” with 6 lever Godrej lock
Other Doors
7’ x 3’
Abs doors( water proof & 10 years warranty)
High standard locks
Bath room & Balcony
7’ x 2’6” (abs doors)
shutters
Living Area Balcony
Balcony/Utility

UPVC Windows
Square Rod Grills
Locking accessories

Bathrooms
3’ x 2’ UPVC Frame
Glazed louvers
Provision for exhaust fan
Square Rod Grills

Stainless Steel sink
Granite top platform
4’ Ceramic tile above counter top
Taps for Corporation Water and Bore Water
Provision for Electric chimney
Loft
Concealed plumbing arrangements

Anti skid Ceramic Tile floor with waterproof coating
Ceramic tiles 7 feet height for side walls
Provision for exhaust fan with wire mesh
“American standard “ bathroom fittings
Geyser connection for bathroom
One tipton and shower hose per toilet
Concealed plumbing arrangements

AC, TV and telephone points
Loft

Wash basin
TV and Telephone points

3’6” high parapet wall in 4.5 “ thick brickwork in terrace
Waterproof coat on the open terrace with a layer of thermal proofing as per IS 6494- 1988
Small area with Roof cover near staircase if rain occurs

6 passengers lift (Sri space lifts)
Clearance Certificate from Lift authority for Lift

Borewell provided and connected to overhead tank
Electric Motor 1.5 HP

15000 litres sump of R.C. Construction
Electric motor 1 HP

Overhead tank of required capacity for Metro water and Borewell water
Submersible Electrical motors of 1 HP and 1.5 HP capacity for sump and borewell
respectively

5’ high compound wall with 4.5” brickwork around the building with gate pillars
MS grill gates with exterior quality paint

Granite flooring
Hand rail stainless steel

Adequate light points shall be provided around the building . in staircase area, meter room
and terrace
Sufficient Exterior lighting all around the premises

Telephone points shall be given in bedrooms and living room

Paving blocks in all the open space around the flats with red tiles inside

RCC framed structure
RCC columns, beams, slabs, brick, masonry, pillar walls
Basement height for 3feet
Floor height 10” clear

Good Quality 53 grade- OPC & PPC Cement

FE – 500 Grade

Good Quality Sand

Internal walls painted with Emulsion Asian Ultima after applying 2 coat putty
External walls weather shield and painted with Asian ACE
Main door varnish finished with Malamine Matt finish

3 Phase Electrical supply with manual change over facility
Concealed copper wiring
MCB (Miniature Circuit Breaker and ELCB (Earth Link Circuit Breaker) provided
Separate electric meters for each Flat and separate meter for all common facilities
provided
Modular Switches

Living / Dining

1 Bell point
1 Light point for Main Door
2 Fan Points
1 point for Night Light
3 Nos of 5Amps Plug Point
1 No of 15 Amps
Power plug for TV and Phone point
1 Phone socket

Bedroom

2 way control for Light and Fan Point
1 No 5 Amps point and 1 No 15 Amps point
Power plug for AC
1 Phone socket

Kitchen

2 Lights and 1 Fan
2 Nos of 5 Amps and 2 Nos of 15
1 Exhaust fan point

Toilets

2 Lights
1 5 Amps and 1 15 Amps point
1 Exhaust point

Balcony

2 Lights

Utility

1 Lights

1 No of 15 Amps point for washing machine

Terrace

1 Lights

Weathering course on the open terrace with laying tile on it (reduction of heat)
Pre-Construction Anti-termite treatment as per IS 6313 -1981

Pest control measures upto plinth level with guarantee letter from the concerned
authorities
Soil testing to be done
Rainwater harvesting was done
Provision for inverter

Kolors Krest

Havells

American Standard

Video Door Phone, CCTV
